Air Die Lifters
Pacesetter Systems Manufactures the Worlds Strongest Quick Die Change Systems and Air Die Lifters

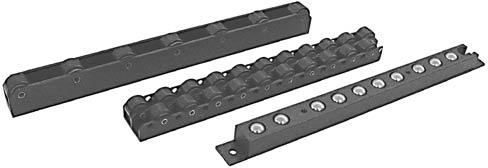

Provides quick and easy movement of dies from the press to the storage or staging area. Excellent alternative to expensive die carts.

Available with cylindrical or ball bearings.  Both styles can be ordered with high-density bearing surface for maximum load carrying capacity.

Model
No.

Transfer Rail
Type

Maximum Load
lbs / Ft.

530

Spherical Bearing

1,200

533

High Density
Spherical Bearing

2,400

531

Cylindrical Bearing

2,000

532

High Density
Cylindrical Bearing

3,000

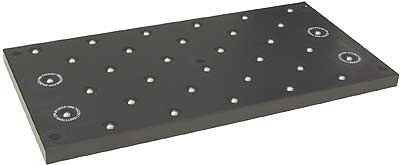

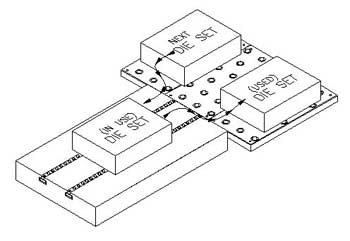

Designed for easy staging of dies during die changeover.   Can handle die weights up to 1,800 lbs. per square foot.  Economical alternative to expensive die carts. High quality precision ground chrome ball bearings for easy die movement in any direction. Heavy duty rollers for a lifetime of reliability.

Model No.

Length

Width

Height

Capacity
lbs. / Sq. Ft.

520-2

24"

2"

1.25"

1,800

520-8

24"

8"

1.25"

1,800

520-12

24"

12"

1.25"

1,800

520-36

24"

36"

1.25"

1,800

520-36 x 36

36"

36"

1.25"

1,800
