Air Die Lifters
Pacesetter Systems Manufactures the Worlds Strongest Quick Die Change Systems and Air Die Lifters

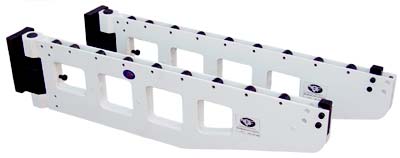

Easily load and unload dies that do not have risers. Our 48" Bolster Extensions are the strongest in the industry, handling loads up to 16,000 lbs., without the need for support legs.  Available in lift-off or folding models, each has high quality precision ground bearings for reliability and easy die

movement.  Folding models fold flat against the press when not in use. Lift-off models can be shared between presses.  Both types will attach either between or in line with T-Slots.  Available from stock in a wide variety of sizes, with custom sizes available on request.

Locate holes for your Bolster Extensions quickly & accurately with our Precision Drill Fixture

Lift off Type

Folding Type

Load
Lbs. / Pair

Die
Resting
Length

Lift Off
Model No.

Length

Height

Minimum
Bolster
Thickness



Folding
Model No.

Length

Height

Minimum
Bolster
Thickness

6,000

15"

549L-15

15"

6"

4.5"



----

----

----

----

19"

549L-19

19"

6"

4.5"

549F-19

19"

6"

4.0"

23"

549L-23

23"

6"

4.5"

549F-23

23"

6"

4.0"

27"

549L-27

27"

8"

6.5"

549F-27

27"

6"

4.0"

31"

549L-31

31"

8"

6.5"

549F-31

31"

8"

4.0"

35"

----

----

----

----

549F-35

35"

8"

4.5"

36"

----

----

----

----

549F-36

36"

8"

4.5"

37"

549L-37

37"

10"

7.8"

----

----

----

----

42"

----

----

----

----

549F-42

42"

10"

6.0"

43"

549L-43

43"

10"

7.8"

----

----

----

----

48"

549L-48

48"

10"

7.8"

549F-48

48"

10"

6.0"

10,000

15"

550L-15

15"

6"

4.5"

----

----

----

----

19"

550L-19

19"

6"

4.5"

550F-19

19"

6"

4.0"

23"

550L-23

23"

6"

4.5"

550F-23

23"

6"

4.0"

27"

550L-27

27"

8"

6.5"

550F-27

27"

6"

4.0"

31"

550L-31

31"

8"

6.5"

550F-31

31"

8"

4.5"

35"

----

----

----

----

550F-35

35"

8"

4.5"

36"

----

----

----

----

550F-36

36"

10"

6.0"

37"

550L-37

37"

10"

7.8"

----

----

----

----

42"

N/A

N/A

N/A

N/A

550F-42

42"

10"

6.0"

43"

550L-43

43"

10"

7.8"

----

----

----

----

48"

550L-48

48"

10"

7.8"

550F-48

48"

10"

6.0"

16,000

31"

552L-31

31"

10"

7.8"

----

----

----

----

36"

----

----

----

----

552F=36

36"

10"

6.0"

37"

552L-37

37"

10"

7.8"

----

----

----

----

42"

----

----

----

----

552F-42

42"

10"

6.0"

43"

552L-43

43"

10"

7.8"

----

----

----

----

48"

552L-48

48"

10"

7.8"

552F-48

48"

10"

6.0"
