Air Die Lifters
Pacesetter Systems Manufactures the Worlds Strongest Quick Die Change Systems and Air Die Lifters

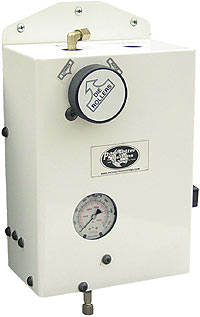

Air-Driven hydraulic power supply for controlling and monitoring hydraulic circuits.  Can be used with external controllers to operate a maximum of 5 circuits.  Operates HydraGlide hydraulic die lifters and GorillaGrip hydraulic clamps.

Powered by normal shop air pressure (80-150 psi) with no electrical requirements.  Hydraulic pressure is controlled by an adjustable air regulator.  System pressure is displayed by a full-range hydraulic pressure gauge.  Hydraulic reservoir gauge to monitor hydraulic fluid levels.

Two Circuit Manual Controller

Control additional hydraulic circuits powered by a single power supply using our two circuit manual controller.  Up to two manual controllers can be added per power supply.

Electronic Two Circuit Key Switch Controller

For the ultimate in safety and security.  Our two circuit key switch controller prevents accidental or unauthorized switching of hydraulic circuits.

Manual Controller
Model No.

Electronic Controller
Model No.

Circuits

Controllers
Required

110

E-110

1

None

120

E-120

2

1

130

E-130

3

1

140

E-140

4

2

150

E-150

5

2
