Air Die Lifters
Pacesetter Systems Manufactures the Worlds Strongest Quick Die Change Systems and Air Die Lifters

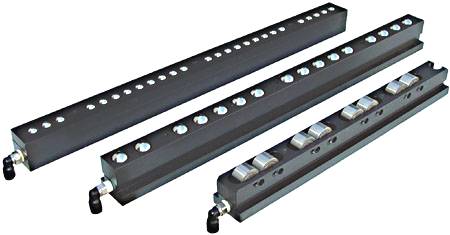

Air Glide Heavy Duty Lifters are designed to provide ample lifting force in situations where hydraulic lifters are not preferable or available.
Air Glide Die Lifters feature high quality O-ring seals and precision ground

bearings for the ultimate in die moving efficiency.  There are no bladders or air bags to puncture, pinch or deteriorate, making them the most reliable pneumatic die lifters in the industry.

T-Slot Selection Table

Airglide
Rails

Nominal
T-Slot
Size

Ball Bearing
Max Load
lbs. / ft.

Cylindrical Bearing
Max Load
lbs. / ft.

515-5/8  T-Slot

5/8

800

N/A

515-3/4  T-Slot

3/4

800

1,000

515-1  T-Slot

1"

1,000

1,000

U-Slot Selection Table

Airglide
Rails

Nominal
U-Slot
Size

Ball Bearing
Max Load
lbs. / ft.

Cylindrical Bearing
Max Load
lbs. / ft.

516-1 1/4  U-Slot

1 1/4

800

N/A

516-1 3/8  U-Slot

1 3/8

1,000

1,000

For use with model 105 D Air Control Valve
